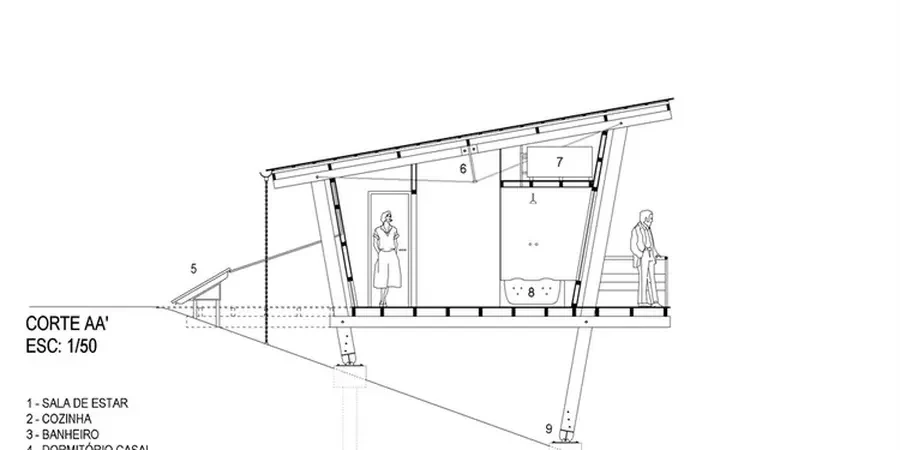

A waterfront project near Brentwood Bay ran into trouble when the contractor hit soft marine clay just two meters down. The initial shallow footing design was scrapped within a week. Pile foundation design became the only viable path forward. In Saanich, this scenario repeats itself on slopes, near creeks, and across the glacial till plains that define the peninsula. The soils here are not uniform. They shift between dense lodgement till, compressible layers of silt, and lenses of loose outwash. A pile foundation design converts that unpredictability into a defined load path. It transfers structural weight through the weak zones into competent soil or bedrock. Our approach combines local drill data with CPT testing to profile the stratigraphy before selecting pile type, diameter, and tip elevation. That sequence matters. It prevents rework, stops pile refusal mid-install, and keeps the foundation within budget. The final design package includes axial capacity curves, settlement estimates, and lateral load checks per NBCC seismic demands. For sites with fill or organic soils, we also integrate vibrocompaction data to verify ground improvement before pile installation begins.
A pile foundation design is only as reliable as the stratigraphy it's built on — in Saanich, that means profiling through marine clay before selecting tip elevation.
Method and coverage
Regional considerations
Saanich's glacial stratigraphy hides a specific danger: soft clay layers trapped between dense till horizons. A pile that sockets into the upper till can appear competent during driving but settle years later as the underlying clay consolidates. We see this most often in the Blenkinsop Valley and around Swan Lake, where post-glacial lacustrine deposits reach thicknesses of five to eight meters. Ignoring that intermediate soft layer is the most expensive mistake a developer can make. The pile foundation design must extend the tip below the weakest stratum, not just into the first refusal layer. Liquefaction adds another dimension. Loose saturated sands in the Rithet's Bog area and along the Colquitz River corridor are susceptible under the M9 Cascadia scenario. Our designs factor in post-liquefaction skin friction reduction using residual strength ratios from Olson and Stark. The result is a pile that maintains capacity when the surrounding soil temporarily loses it. That is the difference between a foundation that survives and one that fails.
Standards that apply
NBCC 2020, CSA A23.3:19, ASTM D1143-20, ASTM D3966-22, ASCE 7-22 (seismic), CSA S6:19 (bridges)
Complementary services
Residential and Small Commercial Pile Design
For single-family homes, duplexes, and low-rise commercial buildings. We deliver pile layout plans, axial capacity calculations, and a pile load test spec. Typical scope includes 4 to 20 piles, with lateral analysis included for sites on slopes exceeding 15%.
Municipal and Mid-Rise Deep Foundation Packages
For schools, mixed-use buildings, and retaining wall foundations. The package includes full LPILE analysis, group efficiency factors, settlement predictions, and construction-phase support. We coordinate with the geotechnical investigation team to ensure SPT and CPT data align with the pile design assumptions.
Typical parameters
Quick answers
How long does pile foundation design take for a typical Saanich lot?
For a single-family residential project with existing geotechnical data, the pile foundation design and drawings are usually completed within 10 to 14 business days. If additional site investigation or CPT testing is required, the timeline extends accordingly.
What is the typical cost range for pile foundation design in Saanich?
Residential pile foundation design packages in Saanich generally range from CA$2,340 to CA$4,800 depending on pile count and slope complexity. Larger commercial or municipal packages fall between CA$5,200 and CA$7,750. Every quote is project-specific and provided after reviewing the geotechnical report.
Do you specify helical piles or driven piles for Saanich soils?
The pile type depends on the soil profile. Helical piles perform well in the dense till common across much of Saanich, while driven steel H-piles are preferred where refusal is expected on bouldery ground. We evaluate both options against the site stratigraphy before making a recommendation.
Is lateral load analysis mandatory for pile foundations in Saanich?
Yes. Saanich's seismic hazard, combined with sloping terrain in many neighborhoods, makes lateral pile analysis a standard part of every design. We model the pile-soil interaction under the NBCC 2020 design spectrum to ensure deflection stays within serviceability limits.
What happens if the pile hits refusal above the design tip elevation?
That is a field condition we address proactively by specifying pile termination criteria in the design documents. If refusal occurs above the target depth, we evaluate the achieved capacity against the design load and determine whether a pile extension, re-drive, or additional pile is required.
