Saanich grew outward from the Cordova Bay shoreline into terrain shaped by glacial retreat. The legacy is a patchwork of dense till, marine clay, and fractured bedrock that reacts very differently under seismic load. A conventional fixed-base structure amplifies that motion floor by floor. Base isolation cuts the chain. It decouples the superstructure from the ground, dropping seismic force transmission by sixty to eighty percent. For critical facilities on the Saanich Peninsula—hospitals, data centers, emergency hubs—that reduction translates directly into post-event operability. Our seismic microzonation work across the Capital Region confirms that site class varies sharply within a single Saanich postal code, making isolation parameters a site-specific exercise every time.
Base isolation doesn't strengthen the building—it redefines the problem. You stop fighting the earthquake and let the ground move underneath.
Method and coverage
Regional considerations
On Saanich soft-soil sites we consistently see isolation bearings specified with insufficient displacement margin. The NBCC 2020 uniform hazard spectra for Victoria-area coordinates produce spectral displacements that outstrip catalogue ratings when site amplification kicks in. A bearing that bottoms out sends the full force straight into the superstructure. That's not isolation—it's a rigid connection with extra steps. We check maximum considered earthquake displacement against the bearing's stability limit, not the design-basis displacement. Another local pitfall is moat wall pounding on tight urban lots near Uptown or Royal Oak, where excavation limits squeeze the seismic gap. We size the gap for MCE plus torsion, then verify with a physical walk-through before the pour.
Standards that apply
NBCC 2020 Part 4, Division B (Seismic Design), CSA S832-14 (Seismic Risk Reduction of Operational and Functional Components), ASCE/SEI 7-22 Chapter 17 (Seismic Isolation)
Complementary services
Nonlinear Time-History Analysis
Site-specific ground motion suites scaled to Saanich basin response. We model isolator hysteretic behavior explicitly in ETABS or SAP2000, verifying story drift, base shear reduction, and residual displacement.
Isolator Specification & Procurement Support
Performance-based specs for LRB and HDR bearings with prototype testing requirements per CSA S832. We review shop drawings and test reports so the installed product matches the design loop.
Peer Review & Regulatory Submissions
Many Saanich municipalities require third-party review for isolated structures. We prepare review packages including design criteria, analysis models, and bearing schedules, then coordinate directly with the review panel.
Construction-Phase Monitoring

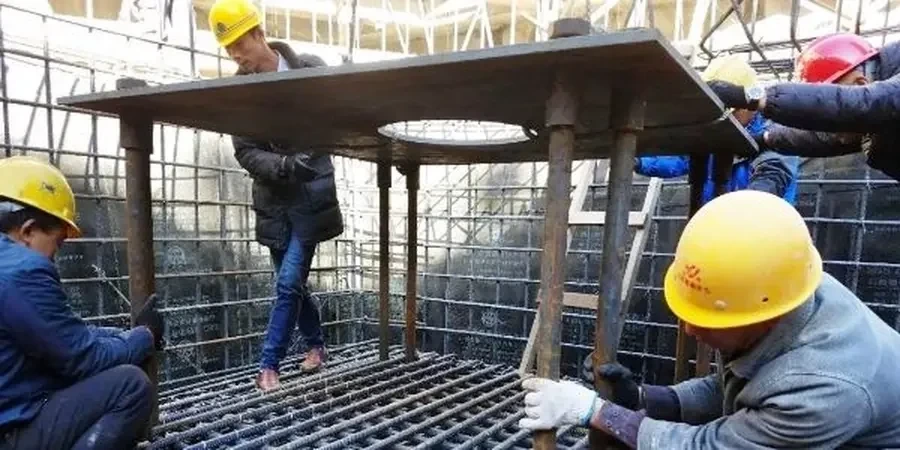

Isolator installation tolerances are tight—typically ±3 mm in plan. We verify placement, grouting, and moat cover installation so the isolation plane performs as analyzed.
Typical parameters
Quick answers
What does base isolation seismic design cost for a Saanich building?
Design fees for a base-isolated structure in Saanich typically fall between CA$6,330 and CA$11,850, depending on building footprint, number of isolators, and analysis complexity. A two-storey essential facility with 20 bearings will be at the lower end; a multi-block complex requiring independent isolation planes and peer review moves toward the upper end. This covers geotechnical input, NLTHA, bearing schedules, and stamped drawings.
Is base isolation required by the BC Building Code for Saanich?
The BC Building Code, which references NBCC 2020, does not mandate base isolation for any occupancy class. It is an alternative design path. For post-disaster buildings—hospitals, fire halls, emergency operations centres—base isolation offers a cost-effective way to meet the higher performance objectives without oversizing structural elements.
How does the Saanich soil profile affect isolator selection?
Saanich spans site class C through E in less than ten kilometres. Soft clay sites elongate the ground motion and demand larger displacement capacity—often 500 mm or more. Stiffer till sites produce shorter-period demand where high-damping rubber bearings with 200–300 mm stroke work well. We run site-response analysis first, then match the isolator to the amplified spectrum, not the rock spectrum.
Can you retrofit base isolation under an existing Saanich building?
Yes, though it is more involved than new construction. The structure must be temporarily supported while the isolation plane is inserted above the foundation. We have done this for heritage masonry and concrete frame buildings on the Island. The key is a detailed condition assessment and a lift-and-transfer sequence that protects the superstructure during the cut.
What testing confirms the isolators will perform during a real earthquake?
CSA S832 requires prototype testing: three fully reversed cycles at design displacement, plus monotonic loading to maximum displacement. We also specify production tests on every isolator shipped to site—compression stiffness, shear stiffness, and hysteretic loop verification. The test data goes into the final as-built model so the analysis reflects actual bearing properties, not catalogue values.
